*   130,000 PSI Flanges
*   Aluminum Steel Composite
*   Space Age Technology

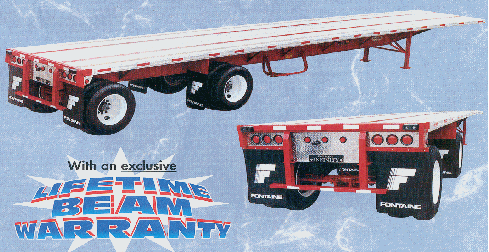

Fontaine offers the new
Infinity with the lifetime beam warranty exclusively through its authorized dealers.  The warranty is also available to subsequent buyers if the purchase is made and validated at any of our dealers throughout America.

Model…………………."Infinity" Lightweight Steel/ Aluminum Composite Platform
Floor……………………1 1/8" Apitong
Crossmembers………….12" Centers-4" Jr. I-Beams
Side Rails……………….5 3/4" Extruded Aluminum-Aluminum Stake Pockets-Double Pipe Spools
                                        & Rub rails
Main Beams…………….36" Kingpin setting- 1/2" X 5" Top and Bottom (130K) Flanges--25" Deep Web
Axles……………………(2) 5/8" Wall-Auto Slacks, WABCO 4S/2M  ABS wired to auxiliary socket
Suspension……………..Turner HT300-10'2" Spread-Electric Dump Valve on rear axle wired to center pin
Hub & Drums…………..10 Hole Disc Hub Piloted W/Outboard Cast Drums -Long Studs
Wheels………………….(8) 8.25 X 24.5 Steel Disc
Tires…………………….(8) 11R24.5 14 Ply Bridgestone R196
Electrical………………..Trucklite Lights W/Center Turn Signals (1) Extra Pair Stop & Tail lights (2) Extra
                                         Pair Clearance Lights.  Closed black grommets.
Paint & Finish………….All Steel Painted Fontaine Black, No Undercoat

Included Misc. Items:

• Lightweight Steel and Aluminum Rear

• Dock bumpers on rear

• Reflective Tape

• 22 Pair Chain tie downs

• Tire Carrier

• Coil Hauling Package

• Holland Mark V Landing Gear

• Full Length Aluminum Winch Track (Roadside)
